8 in FOUR Professional mini micro machine tool Set

Model: W500MA

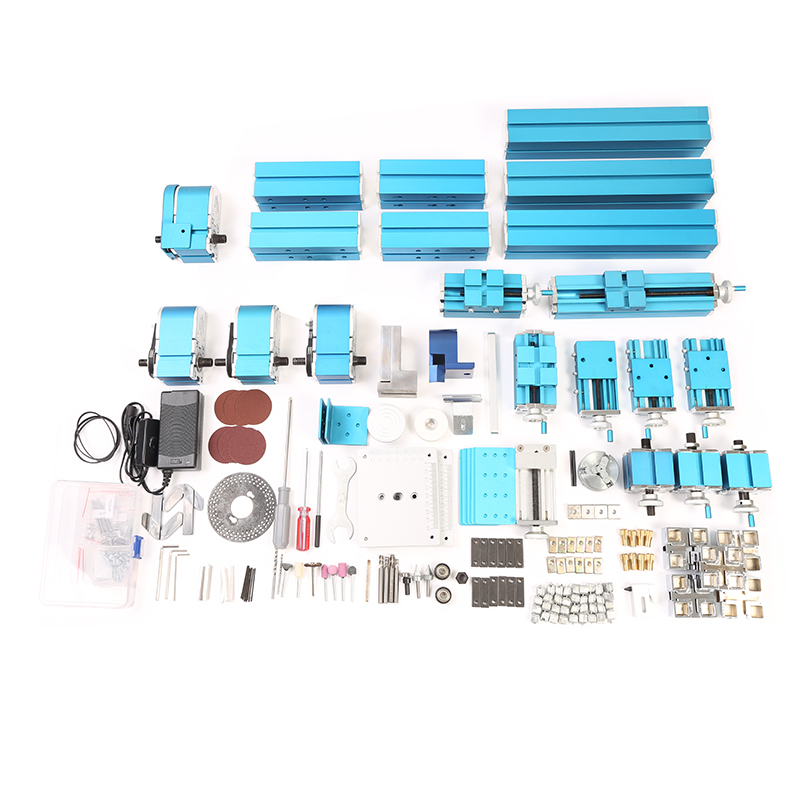

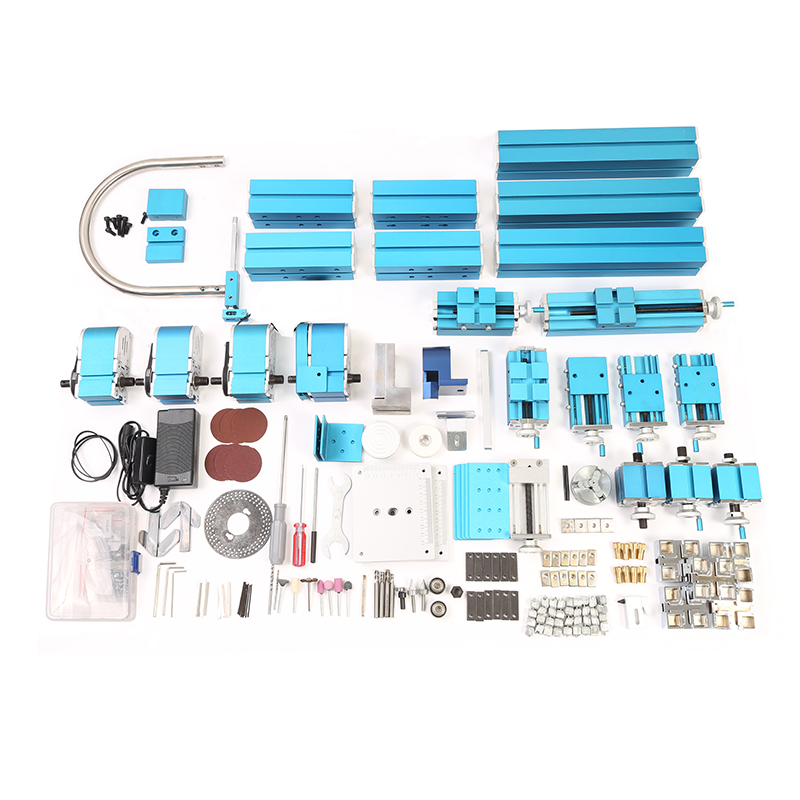

This professional kit can be assembled into jigsaw, lathe, woodturning lathe, drilling machine, milling machine, sanding machine, grinding machine, Copying Attachment Woodturning Lathe etc, and realize at least 8 functions of those machines. it is only assembled in three of 7 kind machines and on-hand grinding machine at the same time, for there are only FOUR motors and headstock are offered. In addition to some accessories, the kit can be assemble into specialist machines.

  • Picture
  • Parameter
  • Video
  • Inquiry


    Applications:

    This professional kit can be assembled into jigsaw, lathe, woodturning lathe, drilling machine, milling machine, sanding machine, grinding machine, Copying Attachment Woodturning Lathe etc, and realize at least 8 functions of those machines. it is only assembled in three of 7 kind machines and on-hand grinding machine at the same time, for there are only FOUR motors and headstock are offered. In addition to some accessories, the kit can be assemble into specialist machines.


    Description:

    XENDOLL power tools: It is driven by 12V safe direct current transformer. It is helpful for improving manual ability and independent thinking, thus effectively improving intelligence of children. So as to be a good didactical tool for children. It is also an ideal tool for DIY hobbyist and modelmaker to make various craft. Wear goggles when using. Children need to be guided by adults.

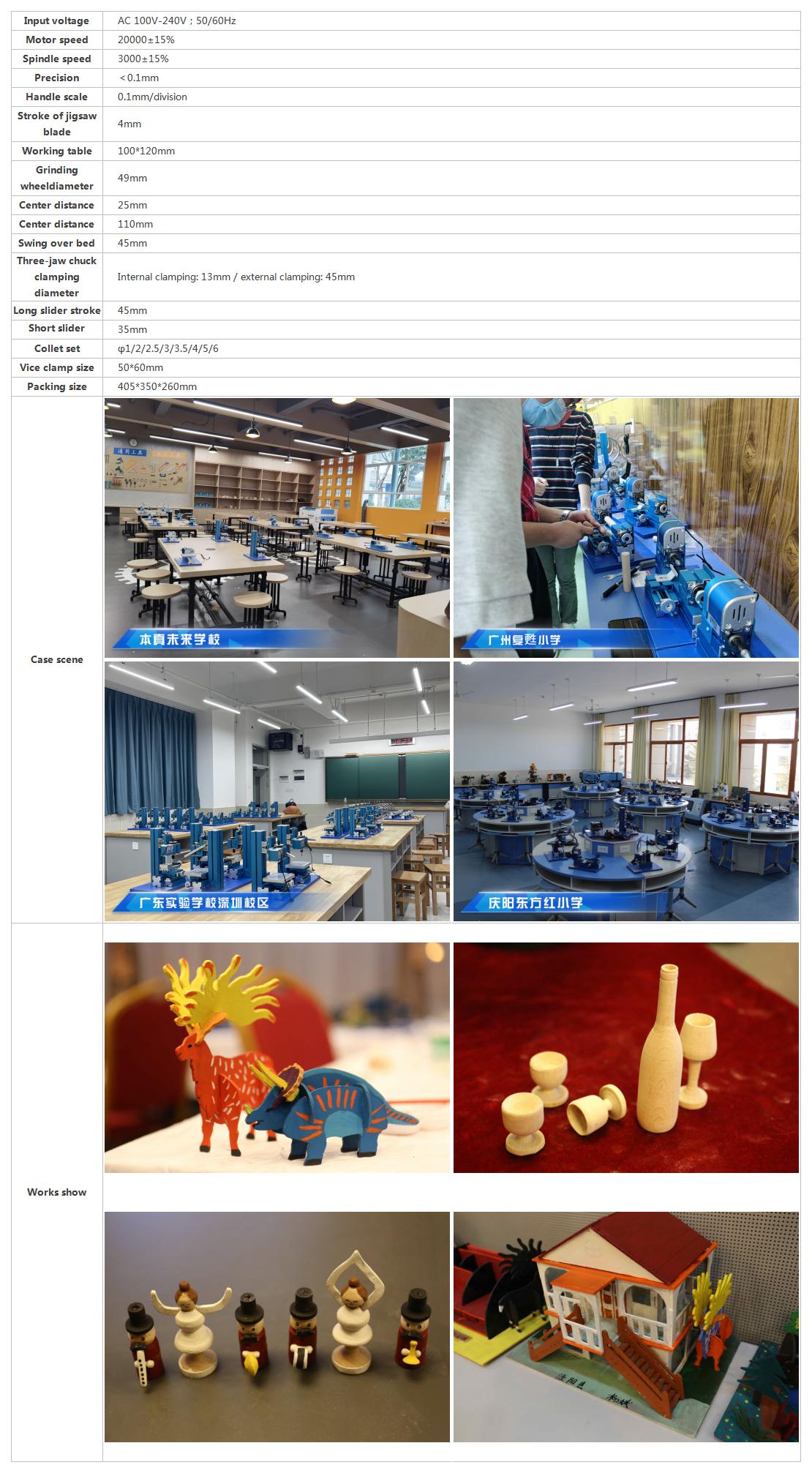

    Parameter:

    Input voltage: AC100V~240V 50/60HZ

    Output voltage : DC12V 2A

    Motor rated power: 24W

    Motor speed: High speed motor 20000r/min±15%

    Spindle speed: high speed motor 3000r/min±15%

    Spindle jump: <0.1mm

    Handle scale: 0.1mm/division


    Jigsaw machine:

    Jigsaw blade:4mm

    Working table: 100*120mm


    On-hand grinding machine:

    Rotary table:49mm


    Woodturning machine:

    Center height: 25mm

    Center distance: 110mm

    Swing over bed: 50mm


    Lather machine:

    Center height: 25mm

    Center distance: 110mm

    Chuck diameter:48mm

    Three-jaw chuck clamping diameter: 13mm claw, 45mm reverse claw


    Milling machine:

    Long slider stroke: 45mm

    Short slider stroke: 35mm

    Collet set (6-piece): Φ1/Φ2/ Φ2.5/Φ3/Φ3.5/Φ4/Φ5/Φ6

    Milling cutter: Φ2/Φ3/Φ5/Φ6


    Drilling machine:

    Long slider stroke: 45mm

    Short slider stroke: 35mm

    Collet set (6-piece): Φ1/Φ2/ Φ2.5/Φ3/Φ3.5/Φ4/Φ5/Φ6

    Twist cutter: Φ2/Φ3


    Sanding machine:

    Center height: 25mm

    Rotary table:49mm


    Drilling machine with dividing attachment:

    Long slider stroke: 45mm

    Short slider stroke: 35mm

    Chuck diameter:48mm

    Three-jaw chuck clamping diameter: 13mm claw, 45mm reverse claw

    Collet set (6-piece): Φ1/Φ2/ Φ2.5/Φ3/Φ3.5/Φ4/Φ5/Φ6

    Milling cutter: Φ2/Φ3/Φ5/Φ6

    Outer Diameter: 88mm

    Inner Diameter: 26mm

    Dial parameters:36,40,48 holes respectively


    Processing ability: It can process wood, plastic and soft metals (pure copper and pure aluminum).
