Foshan Xendoll Intelligent Technology Co., Ltd.

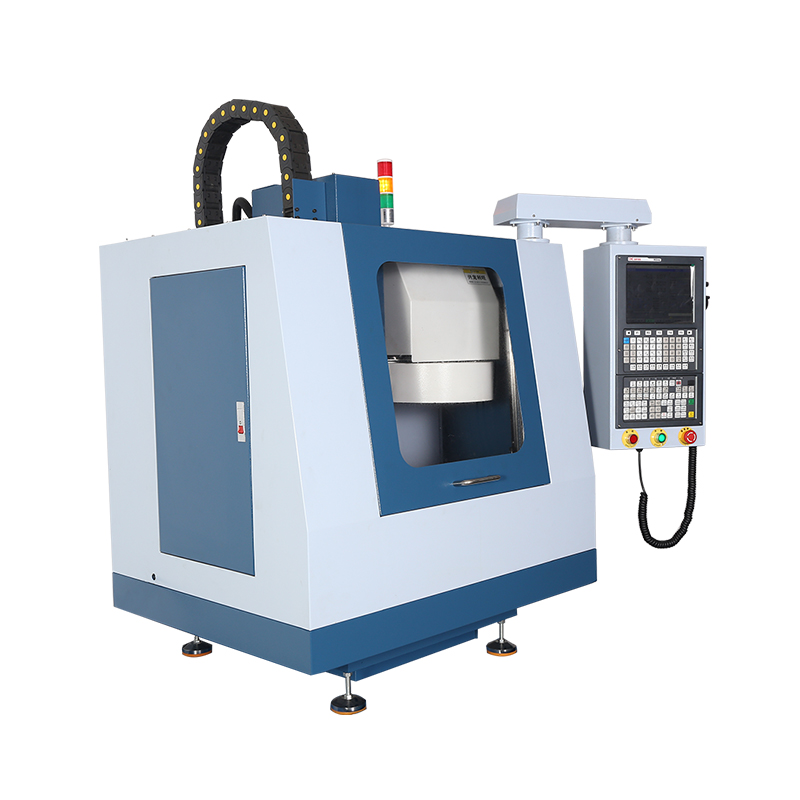

Small Bench Top CNC Machine Center

Model: VMC240
  • Features

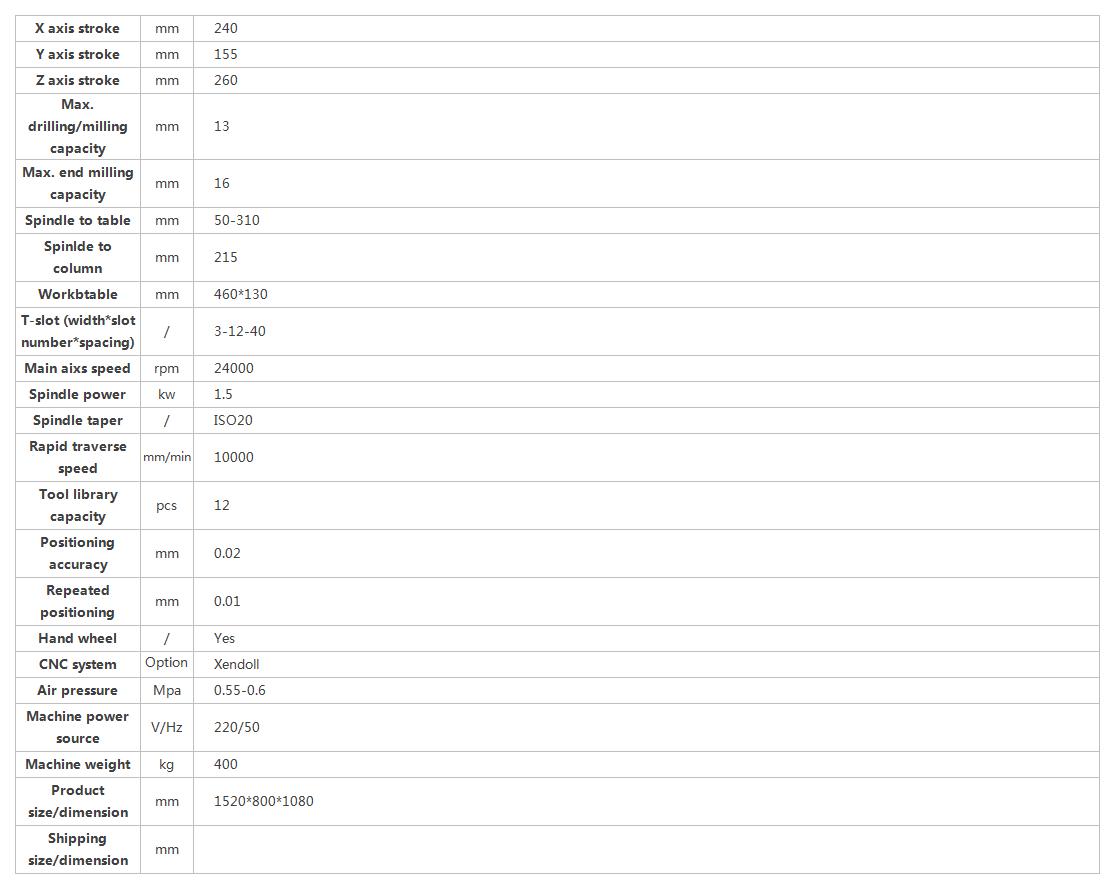

  • Parameter
  • Video
  • Inquiry
    Features
    (1).The machine tool can automatically and continuously complete multiple processing operations on various planes, achieving efficient and high-quality processing.
    (2).It can automatically and continuously perform various processing operations such as high-speed milling, boring, drilling, reaming, tapping, etc. on multiple planes after a single clamping, and can process parts with complex surfaces such as impellers and blades.
    (3).With a voltage of 220V, it occupies a small space and consumes less power. The combination of transparent acrylic and sheet metal enhances viewing safety while ensuring the structural stability and full enclosure of the machine.
    (4). High performance 3 axis CNC center machine controller.
    (5). The standard spec includes electronic hand wheel.
    (6). Selection of high -quality casting materials, more compact.

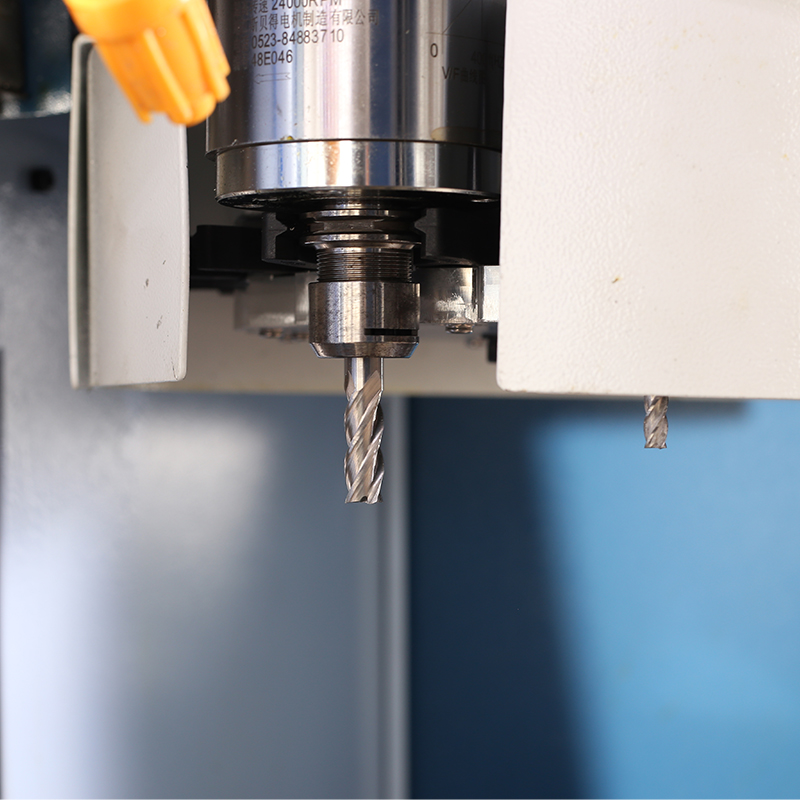

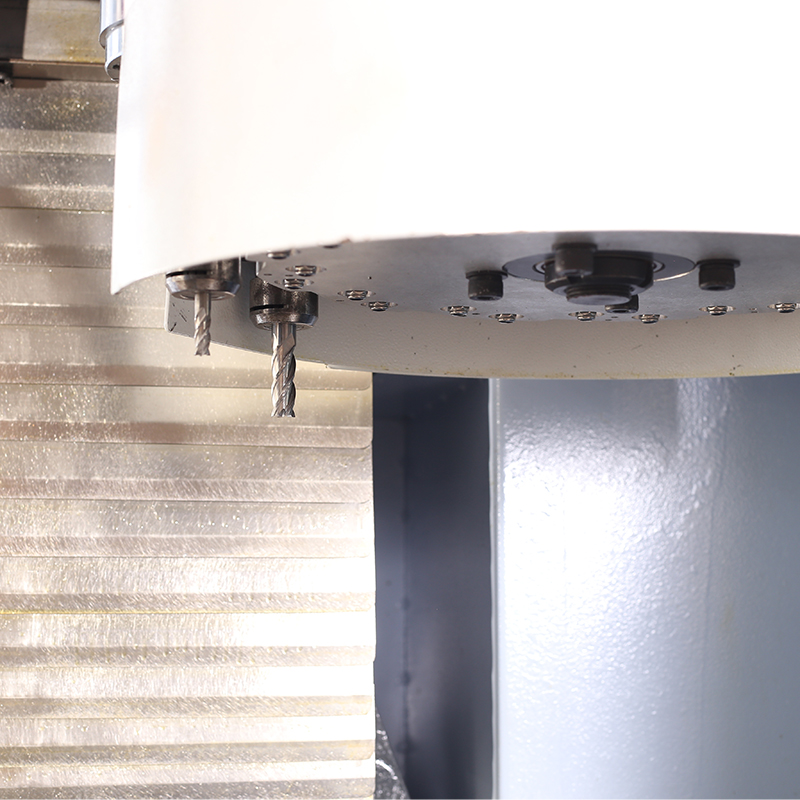

    (7). Bamboo 12 tools ATC.ISO20 spindle type, 24000rpm spindle speed.
    (8).The motor power is 1.5KW, suitable for milling, drilling, engraving, and other processing techniques.
    (9).The track is covered with a dust- and chip-proof telescopic shield to protect the track and ball screw from wear caused by cutting fluid and residuals.
    (10).The C3-grade precision double-nut ball screw, treated with medium-frequency heat treatment and precision grinding, and pre-tensioned on each axis to reduce thermal deformation, ensures high positioning and repeatability accuracy.
    (11).It is equipped with air blowing and cutting fluid functions.
    (12). USB/U dis/RS232COM etc. many kinds of communication mode, to help users achieve different data transmission and software upgrades easily.
    (13). Frequency conversion water cooling motor, low noise, high speed and good durability.
    (14). Perfect self-diagnosis function, internal and external status real-time display, alarm immediately when abnormal.
    (15). Macro variable, macro definition programming, realizing a variety of logical relations. Support macro program with parameters, convenient to the user programming.
    (16). Graphic simulation function: show the graphics of the processing program and the tool path of the actual operation, tool path simulation processing without controlling the operation of the machine, to exam if the preparation process is correct.
    (17). Multi interface selection: support multi language interface display, automatic fault alarm. Processing information display, processing time, the number.
    (18). Parameter tabular: Input / output address number setting, only need to fill in the corresponding value in the configuration table.
    (19). Applicable industry: technology development, advertising design, art, technical college Education & Training CNC and DIY enthusiasts.
    (20).Support the function of cutting off, power-off, and continuous connection. as well as skip segment processing
    (21).Directly compatible with processing programs from SIEMENS, HEIDEN-HAIN, FANUC, SYNTEC, GSK, and HNC systems
