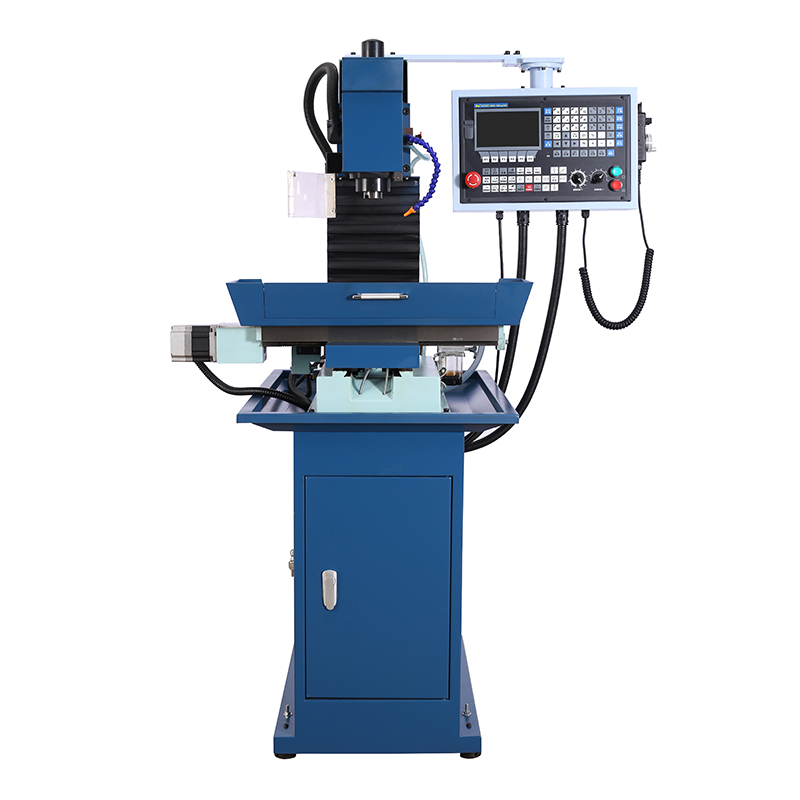

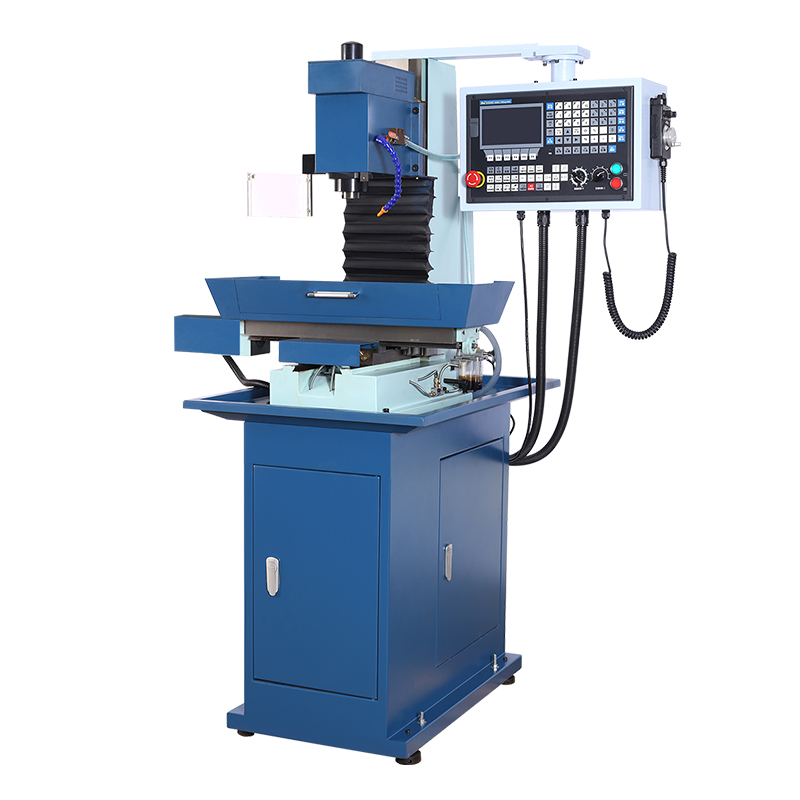

Ø Milling CNC machine tools based entirely on the design and manufacture, reflects the structural integrity of facilitate future design ideas
Ø High performance 4 axis CNC milling controller, Xendoll CNC Controller. Optional GSK980MDc CNC controller or KND CNC controller.
Ø The Xendoll CNC system can control 5 feed axes (including C axis), 2 analog spindles, 1ms high-speed interpolation, 0.1μm control precision, which can obviously improve the machining efficiency, precision, and surface quality.
Ø X, Z, Y, 4th 5th axis name and axis type of Y, 4th, 5th can be defined, 1ms interpolation period, control precision 1μm, 0.1μm, maximum speed 60m/min (up to 24m/min in 0.1μm), adapting to the servo spindle to realize the spindle continuously positioning, rigid tapping, and the rigid thread machining, built-in multi PLC programs, and the PLC program currently running can be selected statement macro command programming, macro program call with parameter, metric/inch programming, automatic tool setting, automatic chamfer, tool life management function, Chinese and English display are available, USB interface, U disc file operation, system configuration and software.
Ø The standard spec includes MPG hand wheel.
Ø MPG handwheel convenient electronic control of each axis of movement.
Ø Selection of high -quality casting materials, more compact.

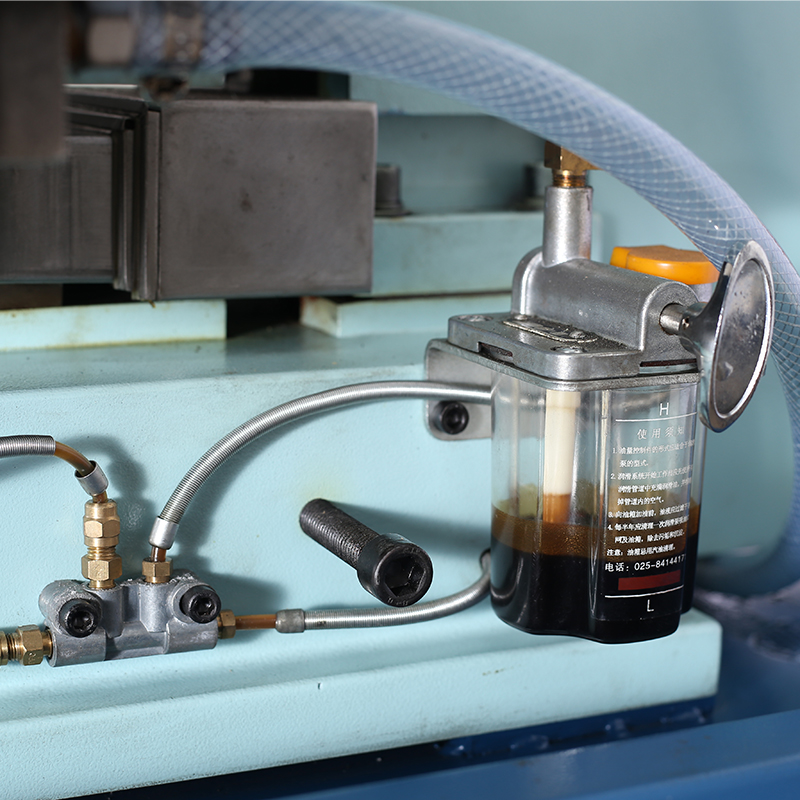

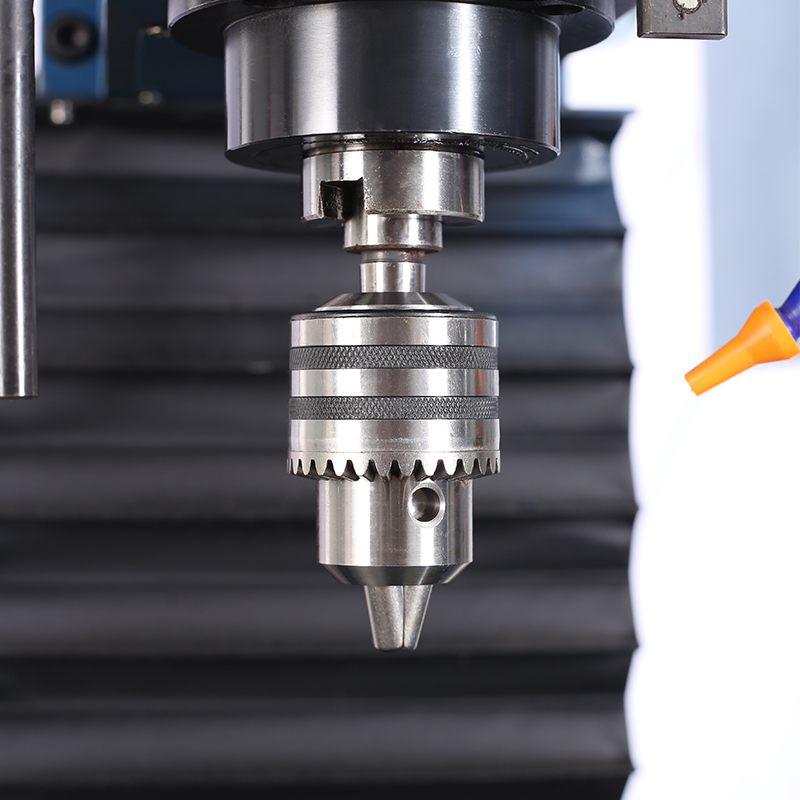

Ø A collection of double-nut ball screw, bearings, and couplings with high precision positioning, while adding an automatic oil lubrication system, to protect your machine precision, extended service life.
Ø 220VAC or 110VAC single-phase AC power supply.
Ø Safety electrical components of high quality and fast plug.

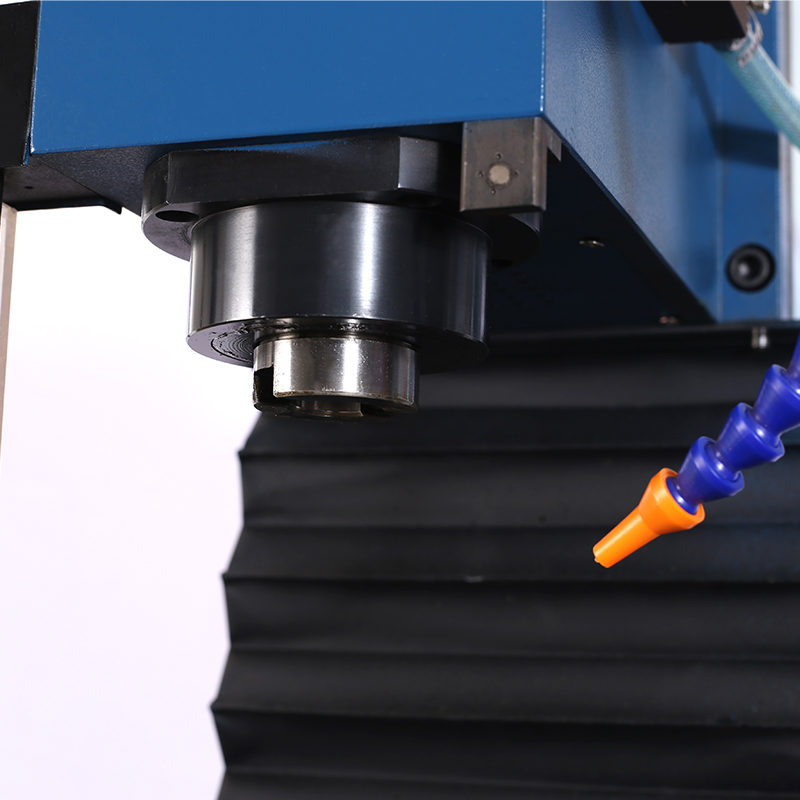

Ø With sink and nozzles.
Ø Applicable industry: technology development, advertising design, art, technical college Education & Training CNC and DIY enthusiasts.

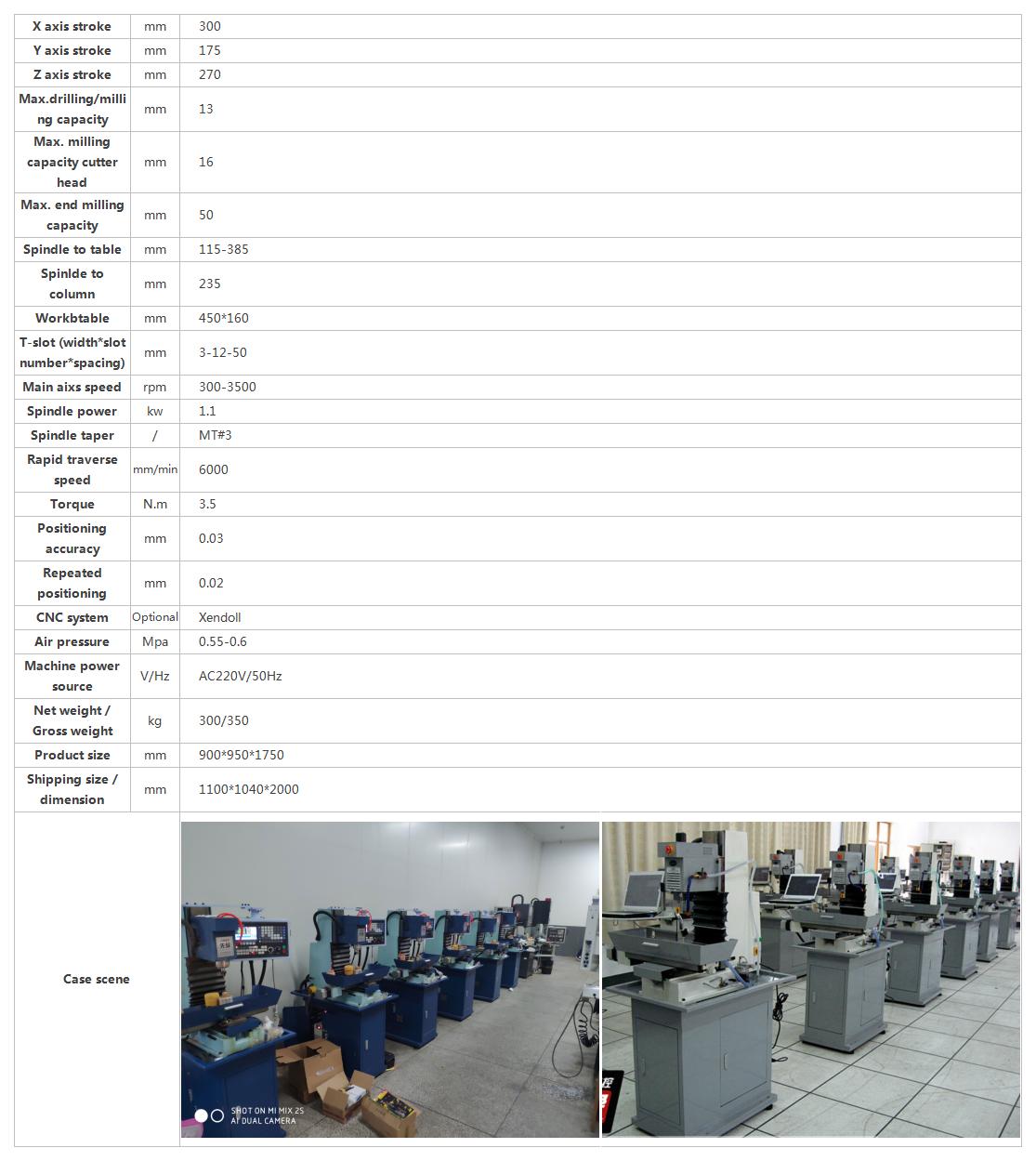

Processing range |
X axis stroke |
mm |
300 |
Y axis stroke |
mm |
175 |
|
Z axis stroke |
mm |
270 |
|
Max. drilling/milling capacity |
mm |
13 |
|
Milling capacity cutter head(max.) |
mm |
16 |
|
Max. end milling capacity |
mm |
50 |
|
Spindle to table |
mm |
115-385 |
|
spindle to column |
mm |
235 |
|
Worktable |
Worktable size |
mm |
450x160 |
T-slot (width*slot number*spacing) |
mm |
3-12-50 |
|
Spindle |
Spindle drive mode |
/ |
Unpowered spindle |
Main axis speed |
rpm |
300-3500 |
|
Spindle power |
kw |
1.1 |
|
Spindle taper |
/ |
MT#3 |
|
Feed drive |
X, Y, Z axis rapid traverse speed |
mm/min |
6000 |
X, Y, Z axis torque |
N.m |
|
|
Positioning accuracy (X, Y, Z axis) |
mm |
0.03 |
|
Repeated positioning (X, Y, Z axis) |
mm |
0.02 |
|
Handwheel |
Yes/No |
Yes |
|
Cooling system |
Yes/No |
Yes |
|
CNC system |
/ |
Xendoll |
|
Air pressure |
pa |
0.55-0.6Mpa |
|
Machine power |
V/Hz |
AC220V/50Hz |
|
Gross weight/net weight |
kg |
300/350 |
|
Product size/dimension |
mm |
900x950x1750 |
|
Shipping size/dimension |
mm |
1100x1040x2000 |
