The woodworking shop, a space full of natural ambiance and creativity, is not just a place for making wooden products, but also a practical platform that integrates traditional woodworking techniques with modern design concepts.

Whether you are a beginner or an experienced woodworking enthusiast, you can find suitable projects and challenges here. By participating in woodworking activities, makers not only improve their hands-on skills and cultivate innovative thinking but also incorporate modern design elements into the creative process, giving traditional woodworking a new lease of life and vitality.

Building on the woodworking shop, engineering enlightenment education further expands makers' horizons and skill boundaries. By introducing advanced equipment such as mini metal milling machines, makers can learn the basic principles and operating techniques of metalworking, enabling a transition from woodworking to metal processing.

In the woodworking shop, the mini metal milling machine has a wide range of applications. For example, when making wooden models or artworks, makers can use the mini metal milling machine to precisely machine metal parts, such as connectors and decorative pieces, enhancing the overall texture and aesthetic appeal of their work.

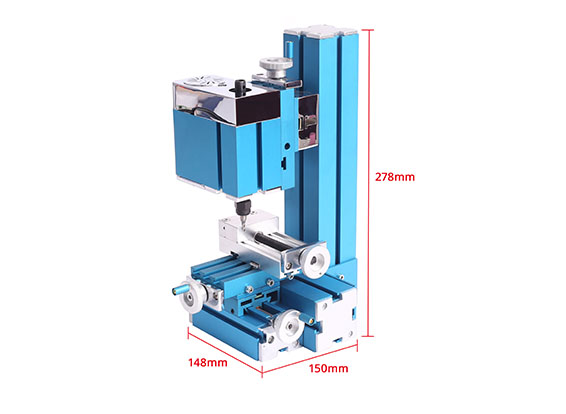

W104MB Metal Milling Machine – Specifications

Features:

The milling machine operates on a safe power supply, with no plastic parts in the body, greatly improving stability and durability. It can perform boring, milling grooves, slots, steps, and other three-dimensional shapes, and has planar engraving capabilities.

Technical Parameters:

Motor speed: 20,000 r/min ±15%

Spindle speed: 3,000 r/min ±15%

Voltage/Power: 100V-240V, 36W (24W or 60W optional)

Large slide travel (X-axis): 45 mm

Small slide travel (Y, Z-axis): 35 mm

Collet specifications: φ1, φ2, φ2.5, φ3, φ3.5, φ4, φ5, φ6 mm

Handwheel scale: 0.05 mm/graduation

Vice clamping size: 50×60 mm

Product dimensions: 165×190×278 mm

Packaging dimensions: 330×205×241 mm

Machinable materials: wood, soft metals (gold, silver, aluminum, copper), acrylic, plastic, etc.

The mini metal milling machine, as a small desktop processing device, is loved by makers for its compact size, light weight, and ease of operation. It can perform various tasks such as machining flat surfaces, grooves, and curved shapes, and by changing tools, it can also handle drilling, boring, and other complex operations. For beginners, the mini metal milling machine offers a low-cost, low-risk practice platform, allowing them to gradually master basic metalworking skills in a safe environment.

The woodworking shop in makerspaces, together with engineering enlightenment education, provides a practical platform for makers to combine traditional craftsmanship with modern technology.

Looking ahead, as maker culture continues to grow and become more widespread, we have every reason to believe that woodworking shops and engineering enlightenment education will play an increasingly important role in many fields, contributing to the cultivation of a new generation of talent with innovative spirit and practical ability.
