Do you know what a CNC machining center is?

Add Date: 2024/10/22    Views: 1

Keyword:# Small machining center, # Desktop machining center, # Small five axis machining center, # Desktop teaching machining center, # Pilot five axis linkage machining center



A machining center is a highly mechatronic CNC machine tool equipped with a tool magazine and automatic tool-changing capabilities, allowing for multi-process machining of a workpiece after a single clamping. Through its computational control system and stable mechanical structure, the machining center achieves high-precision machining, ensuring dimensional accuracy and surface quality of the workpiece. It adapts to various machining tasks by flexibly configuring tools and accessories.

The machining center employs a computer numerical control system to automate the machining process through pre-programmed instructions. It comprises components such as the machine structure, spindle, tool magazine, and control system, enabling multi-axis machining of workpieces through coordinate systems and axial movements.

Machining centers are widely used in fields such as mechanical manufacturing, aerospace, automobile manufacturing, mold making, and medical equipment manufacturing. For example, in the aerospace industry, machining centers are used to manufacture complex parts like aircraft engine blades and fuselage structural components. In automobile manufacturing, they are extensively applied to the production of automotive components such as engine blocks and gearbox casings.

Small-scale CNC machining centers, controlled by programs, can achieve continuous and stable machining processes, enhancing production efficiency. Additionally, since they integrate multiple machining functions, such as milling, drilling, and tapping, they reduce process changes and manual intervention time, further shortening the production cycle. Furthermore, the spindle speed and feed rate of small-scale CNC machining centers are infinitely variable, facilitating the selection of appropriate cutting parameters to improve machining efficiency.

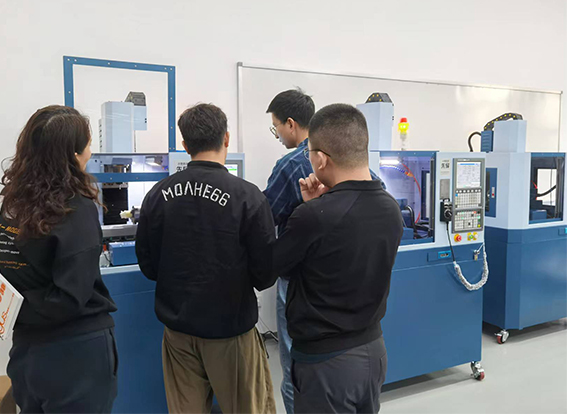

Small machining centers, due to their compact size and comprehensive functionality, are ideally suited as training equipment. In vocational skills education and engineering technology education, students can operate small machining centers to acquire and master the basic knowledge and skills of CNC machining.

Through hands-on operation, students can gain a deeper understanding of key aspects such as machining processes, tool selection, and program writing, thereby enhancing their practical abilities and problem-solving skills.

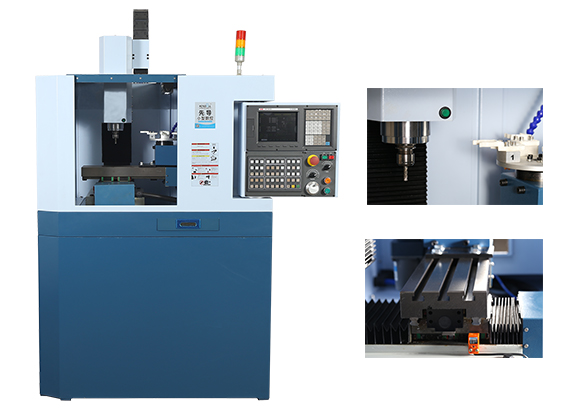

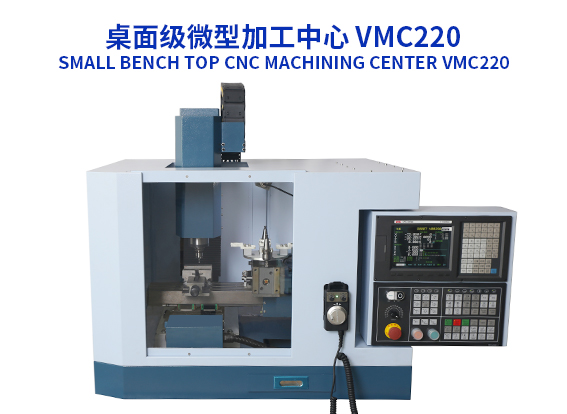

XENDOLL Small Machining Center VMC220



技术参数:

Tool clamping

2-13mm

Workbench

400mm*140mm

Maximum drilling diameter

13mm

Maximum tapping diameter

8mm

X-axis travel

220mm

Y-axis travel

120mm

Z-axis travel

200mm

Rapid traverse speed

X/Y axis 6000mm/min;Z axis 4000mm/min

Tool magazine

4 stations

Feed control

Closed-loop stepper motor

Feed motor torque

2.2N/m

Spindle speed

0-3000rmp

Automatic door

Up-and-down automatic switch

Automatic tool-changing system type

Pneumatic tool changing

Electronic handwheel

6-axis 3-speed electronic handwheel

Power supply used

AC220V/50Hz

Machine base

optional configurations

Overall dimensions

1000mm*850mm*970mm

Weight

220KG



Small machining centers have broad application prospects and significant advantages in the field of education. It can not only provide students with more comprehensive and in-depth practical opportunities, but also promote teaching innovation and improve teaching quality. Therefore, in vocational skills education, engineering technology education, and related professional training teaching, small machining centers should be more widely applied and promoted. Meanwhile, with the continuous advancement of technology and the continuous development of the market, the application prospects of small machining centers in the field of education will be even broader.
