Choosing XENDOLL C19B small CNC milling machine saves more costs

Add Date: 2024/10/15    Views: 1

Keywords: # Small CNC Machine Tool, # Desktop CNC Machine Tool, # Small Teaching CNC Milling Machine, # Small Teaching Machining Center, # Desktop CNC Lathe








Small CNC milling machine is a high-precision automated processing equipment widely used in various mechanical processing fields. A small CNC milling machine is a milling machine with a relatively small volume and compact structure. It integrates a digital control system and can perform milling processing more accurately under the control of program code.



As one of the advanced educational equipment, small CNC milling machines have the characteristics of high precision, high efficiency, and multifunctionality, which can meet the demand for technical talents in modern manufacturing industry. Its introduction has promoted the modernization process of educational equipment and facilitated innovation and reform of educational teaching methods.

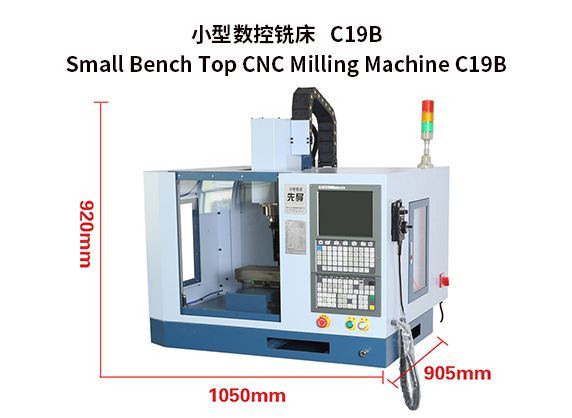

XENDOLL C19B small CNC milling machine



Product features:

(1) Using a voltage of 220 volts, it occupies a small area and consumes less power. It combines transparent acrylic and sheet metal to improve observation safety while ensuring the structural stability of the machine. It is fully enclosed.

(2) Enhanced functionality, three-axis linkage, equipped with industrial grade CNC system, suitable for international universal programs, automatic fault detection and alarm function, and power-off memory function.

(3) The spindle uses a brushless DC motor with high power and torque.

(4) The spindle motor has a power of 1.1KW and can be used for processes such as milling, drilling, and carving.

(5) The three-axis track is covered with a dust-proof and chip proof telescopic cover to protect the track and ball screws from wear caused by cutting water and debris entering.



Applicable industries:

Vocational school CNC teaching, college innovation laboratory technology production, maker center, CNC teaching and training, etc.



Technical Parameter:

X/Y/Z axis travel

300/130/200

Workbench size

460*110mm

Maximum drilling diameter

13mm

Maximum milling diameter

30mm

Fast moving speed

X/Y轴4000mm/min Z轴 3000mm/min

Spindle speed

100-3000Rpm

Feed control

Rated torque of closed-loop stepper motor 2.2N/m

Electronic handwheel

Equipped with a 6-axis three speed electronic handwheel

Spindle motor power

1.1KW

Use voltage

AC220V/50Hz

External dimensions

1050*905*1030mm

Net weight

205kg

Numerical Control System

Industrial grade CNC system





The application field of small CNC milling machines is in the mechanical manufacturing and grinding tool manufacturing industries. They can be used to manufacture various types of mechanical equipment parts, and can quickly and accurately observe the shape and structure of the machining tool and the first version. In education and research, they can be used as classroom auxiliary teaching and teaching training for CNC technology, improving students' practical ability and operational skills.



Due to the relatively simple structure of small CNC milling machines and the use of advanced CNC technology and high-quality materials for manufacturing, their maintenance costs are relatively low. And the failure rate of small CNC milling machines is relatively low, which can reduce maintenance time and costs, making long-term use more economical.



Small CNC milling machines have become indispensable tools in modern manufacturing and education fields due to their high precision, high efficiency, high stability, and wide range of application scenarios. For individuals or organizations considering purchasing or using small CNC milling machines, it is essential to understand their basic concepts, technical parameters, main functions, application areas, and maintenance costs.
