Leading Small CNC Lathe C57 Helps Manufacturing and Education Industries

Add Date: 2024/7/18    Views: 79

Keywords: # Small CNC lathe, # Desktop CNC lathe, # Mechatronics equipment, # Educational equipment lathe, # Small CNC teaching machine tool

With the transformation and upgrading of the manufacturing industry and the rapid development of high-end equipment manufacturing, market competition is becoming increasingly fierce, and the demand for CNC machine tools is constantly increasing. As one of the key equipment to enhance the competitiveness of the manufacturing industry, the application level of CNC lathes directly affects the market competitiveness and sustainable development ability of enterprises. Therefore, enterprises have increased their investment and research and development efforts in CNC lathes to enhance their market competitiveness and core competitiveness.

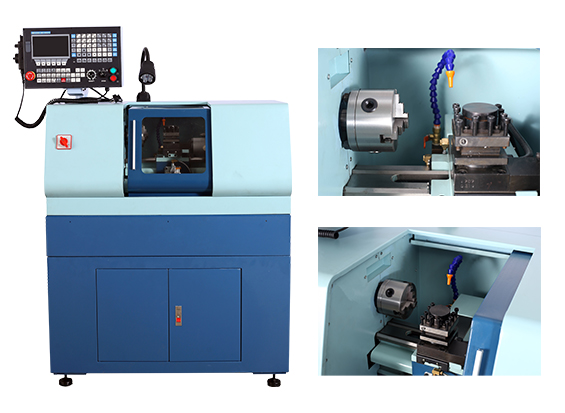

Small CNC lathe, model: C57

Product features:

1. The machine is equipped with an industrial grade CNC system as standard, which uses a 32-bit high-performance industrial grade CPU as the control core to achieve μ m level precision motion control. The system has strong functions, stable performance, intuitive and concise interface display, and easy operation. Other mainstream CNC systems can be configured according to user needs, such as Guangshu, Kainidi, etc.

2. Equipped with an electronic handwheel and a four station electric knife holder, it adopts precision gear positioning with high repeatability accuracy.

3. Optional servo control system, fast response speed, quiet and stable processing, high efficiency and accuracy.

4. Advanced cutting tools are optional, and the surface roughness of the workpiece can reach Ra0.8.

5. Optional rear mounted automatic chuck or front mounted automatic chuck and its automatic feeding device.

6. It has FMS flexible processing compatibility and can be automated according to customer needs.

7. The main processing materials include non-ferrous metal materials such as iron, copper, and aluminum.

Technical parameters:

positioning accuracy

0.03mm

Repetitive positioning accuracy

0.02mm

Maximum turning diameter

210mm

X-axis travel

80mm

Z-axis travel

280mm

Tail seat travel

50mm

Spindle speed

300~1750rpm±10%

Fast moving speed

5000mm/min(Optional 10000mm/min)

Electric knife holder work position

4 workstations

Cooling system

Water cooling, system M code control

Spindle hole taper

MT#3

Taper of tailstock hole

MT#2

Spindle motor power

500W (optional 1.1KW)

Use power supply

AC220V/50Hz

Electronic handwheel

4-axis three speed electronic handwheel

Screw rod

C3 grade ball screw


XENDOLL small CNC lathe C57 brings better benefits to the manufacturing and education industries, with multiple advantages

1. Reduce costs and thresholds, lower investment costs, and lower the purchase cost of CNC lathes;

2. Improve production efficiency and flexibility, small CNC is suitable for small batch and multi variety production modes;

3. Improve processing accuracy and quality. Automated processing reduces human error and enhances product quality, stability, and consistency;

4. Expand applications and fields, including education and training, research and development sampling, and laboratory production, which are easy to learn and greatly reduce costs;

5. Promote technological innovation and industrial upgrading. With the widespread application of small CNC lathes in the manufacturing industry, it has driven the development of the manufacturing industry towards intelligence, precision, and green direction, achieving industrial upgrading and transformation.

In summary, small CNC lathes play an important role in the manufacturing industry due to their advantages of low cost, high efficiency, high precision, and flexibility. They not only reduce production costs and thresholds, improve production efficiency and product quality, but also expand application areas and promote technological innovation and industrial upgrading.
